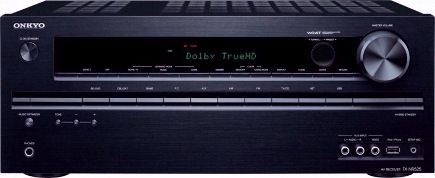

Onkyo TX-NR525

Network AV receiver (80 watt 7.2 Channel)

More Features, Better Sound for First-Time Buyers

The TX-NR525 has everything you need in an A/V receiver. There’s wireless-ready networking with an expanded choice of Internet streaming services to browse from your smartphone. You can send a range of audio formats from computer and NAS to the home theater, or stream music stored on iPhone® and Android devices using our remote app. We’ve included six HDMI® inputs for your media players and gaming consoles, enabled 4K video passthrough, and supported the latest hi-res audio and 3D video codecs. And it’s a really simple receiver to use—our hi-def user interface even has thumbnail video previews so you can select content at a glance. Remote app control extends beyond the living room to the kitchen or deck, for example. Most importantly, the TX-NR525 delivers exceptionally good sound without blowing the budget. Five discrete amplifiers and a 192 kHz/24-bit TI Burr-Brown DAC pumps out thrilling surround for games and movies, while offering superb two-channel performance to the hi-fi enthusiast. Inclusions such as banana plug-compatible speaker posts and upgradedAudyssey MultEQ® room equalization make the TX-NR525 the best deal around for first-time buyers.

Special Features

• 6in/1out HDMI Support for 3D Video and Audio Return Channel
• 4K Passtrough Function from Compatible Source Devices via HDMI®
• Network Capability Delivers Internet Radio and Network Streaming
• Playback of Audio Files Through Local Network
• Picture-in-Picture Input Source Preview with InstaPrevue™ Technology
• Direct Digital Connection of iPod/iPhone via Front-Panel USB Port
• Supports Onkyo Remote Apps for iPod touch®/iPhone® and AndroidDevices
• Audyssey MultEQ® for Room Acoustic Correction
• Zone 2 Line-Out for Distributed Audio Playback in Another Room

Product Specifications

• Power Output
  • All Channels: 100 W (6 ohms, 1 kHz, 0.7%, 2 channels driven)
  • Front L/R: 80 W (8 ohms, 20 Hz-20 kHz, 0.7%, 2 channels driven, FTC), 125 W + 125 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
  • Center: 80 W (8 ohms, 20 Hz-20 kHz, 0.7%, 2 channels driven, FTC), 125 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
  • Surround L/R: 80 W (8 ohms, 20 Hz-20 kHz, 0.7%, 2 channels driven, FTC), 125 W + 125 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
• Dynamic Power: 180 W (3 ohms, 1 ch), 160 W (4 ohms, 1 ch), 100 W (8 ohms, 1 ch)
• THD+N (Total Harmonic Distortion + Noise): 0.08% (20 Hz-20 kHz, Half power)
• Damping Factor: 60 (Front, 1 kHz, 8 ohms)
• Input Sensitivity and Impedance: 200 mV/47 k-ohms (Line)
• Rated RCA Output Level and Impedance: 200 mV/2.2 k-ohms (Line Out)
• Maximum RCA Output Level and Impedance: 2.0 V/2.2 k-ohms (Line Out)
• Frequency Response: 5 Hz-100 kHz/+1 dB, -3 dB (DSP bypass)
• Tone Control: ±10 dB, 50 Hz (Bass), ±10 dB, 20 kHz (Treble)
• Signal-to-Noise Ratio: 100 dB (Line, IHF-A)
• Speaker Impedance: 6 ohms–16 ohms
• FM/AM Preset Memory: 40 stations

Integration Access

• RS-232
• IR Input
• Ethernet
• ONKYO-RI System Control
• 12V Trigger

General

• Warranty: 2 YEARS
• Power Supply: AC 120 V, 60 Hz
• Power Consumption: 4.2A
• No-Sound Power Consumption:  60W
• Standby Power Consumption: 0.1W
• Dimensions (W x H x D): 17 1/8" x 6 13/16" x 12 15/16" (435 x 173.5 x 328 mm)
• Weight: 18.7 lbs (8.5 kg)
