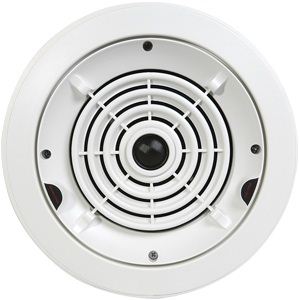

SpeakerCraft CRS6 One

In-ceiling speaker with pivoting tweeter

For a lighter taste in distributed audio, the CRS One offers distinctive bass notes. Add in a properly measured waveplane to evenly distribute that sweet silk tweeter. The resulting yield is smiles all around.

The popularity of flush-mounted speakers in the ceiling continues to grow. The Custom Round Series, or CRS, has long been a staple of installers around the world for these applications. Available in 5-, 6-, and 8-inch versions, a model exists for almost every specific situation.

Featuring identical drivers and performance to their CRS counterparts, the Custom Square Series, or CSS, speakers simply present these elements in a square baffle. Many designers and installers prefer this physical format in certain installations due to architectural or other aesthetic considerations.

Most of the CRS/CSS speakers feature our patented WavePlane tweeter baffle, which improves both dispersion and high frequency performance. Most of the CRS/CSS also offer pivoting tweeters and adjustable woofer and/or tweeter levels for fine-tuning the system during trim out.

Order Stock # ASM86611

Specifications

• 6 1/2" Polypropylene Cone Woofer with Rubber Surround
• Pivoting 1" Liquid Cooled Silk Dome Tweeter
• Timbre-Matched to All One Series Speakers
• Sensitivity: 92dB 1W/1m
• Power Handling: 100 Watts
• Impedance: 8 Ohms
• Frequency Response: 40Hz - 20kHz
• Diameter x Depth: 9 13/16" x 4 1/16" (249 mm x 103 mm)
• Cut-Out Diameter: 8 1/4" (210 mm)
