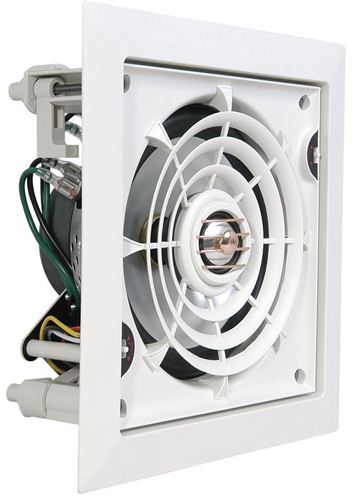

SpeakerCraft CSS6 Three

Square in-ceiling speaker with pivoting tweeter

All the best of the CRS THREE and a square grill to match the square ceiling fan or other like features in your home.

Simple solutions are often the most effective. In response to requests from the field, we have taken the technology from our Award Winning Custom Round Series in-ceiling speakers and created a line of square ceiling speakers. Since aesthetics are such a large part of the appeal of flush mounted loudspeakers, the new CSS6 series will offer yet another appearance option. The CSS6 One and CSS6 Three both feature six inch woofers and coaxially mounted tweeters. They are identical to their round counterparts in the CRS series with regards to drivers and sonic performance.

As with the CRS series, the CSS product features our innovative WavePlane™ technology. Not only does the WavePlane™ enhance the speaker's dispersion pattern, it also blocks high-frequency information from wrapping around the tweeter and bouncing off the modulating woofer surface. This dramatically improves the clarity and detail of the speaker. This allows CSS speakers to sound far better off axis than any other square speaker on the

Matches Square Ceiling Fixtures and Lighting

Featuring identical drivers and performance to their CRS counterparts, the Custom Square Series, or CSS, speakers simply present these elements in a square baffle. Many designers and installers prefer this physical format in certain installations due to architectural or other aesthetic considerations.

Most of the CRS/CSS speakers feature our patented WavePlane tweeter baffle, which improves both dispersion and high frequency performance. Most of the CRS/CSS also offer pivoting tweeters and adjustable woofer and/or tweeter levels for fine-tuning the system during trim out.

Order Stock # ASM85631

Specifications

• 6 1/2" Aluminum Cone Woofer with Dual Voice Coil and Butyl Rubber Surround
• Pivoting 1" Liquid Cooled Aluminum Dome Tweeter with Neodymium Magnet
• Front-Mounted Switches Allow for up to ±3dB of Bass and Treble Adjustment
• Timbre-Matched to All Three Series Speakers
• Sensitivity: 90dB 1W/1m
• Power Handling: 125 Watts
• Impedance: 8/6/4 Ohms, Depending on Switch Settings
• Frequency Response: 40Hz - 20kHz
• Dimensions: (H x W x D) 8 3/4" x 8 3/4"x 4" (222 mm x 222 mm x 102 mm)
• Ceiling Cut-Out: (H x W) 7 1/8" x 7 1/8" (181 mm x 181 mm)
