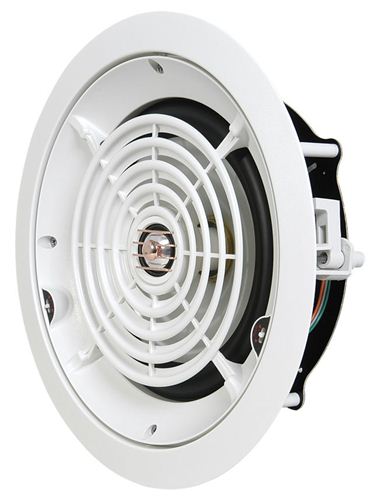

SpeakerCraft CRS8 Three

In-ceiling speaker with pivoting tweeter

Forerunner to the loudspeaker was the telephone receiver. A humble beginning for the speaker. We are humbled too. Our speakers have become the marque of excellence in the custom arena. We are grateful for that.

The popularity of flush-mounted speakers in the ceiling continues to grow. The Custom Round Series, or CRS, has long been a staple of installers around the world for these applications. Available in 5-, 6-, and 8-inch versions, a model exists for almost every specific situation.

Featuring identical drivers and performance to their CRS counterparts, the Custom Square Series, or CSS, speakers simply present these elements in a square baffle. Many designers and installers prefer this physical format in certain installations due to architectural or other aesthetic considerations.

Most of the CRS/CSS speakers feature our patented WavePlane tweeter baffle, which improves both dispersion and high frequency performance. Most of the CRS/CSS also offer pivoting tweeters and adjustable woofer and/or tweeter levels for fine-tuning the system during trim out.

Order Stock # ASM86831

Specifications

• 8" Aluminum Cone Woofer
• Pivoting 1" Aluminum Dome Tweeter
• Front-Mounted Switches Allow for up to ±3dB of Bass and Treble Adjustment
• Timbre-Matched to All Three Series Speakers
• Sensitivity: 90dB 1W/1m
• Power Handling: 125 Watts
• Impedance: 8/6/4 Ohms, Depending on Switch Settings
• Frequency Response: 38Hz - 20kHz
• Diameter x Depth: 11 15/16" x 4 1/2" (303 mm x 114 mm)
• Cut-Out Diameter: 9 3/4" (248 mm)
