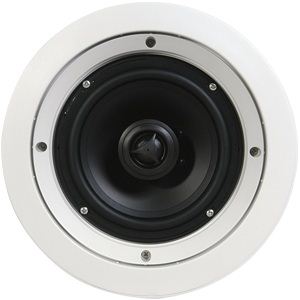

SpeakerCraft CRS6 Zero

In-ceiling speaker with pivoting tweeter

Very light cone materials allow for fast reaction times. This results in accurate clean sound when exceptional value is needed for low power systems.

The popularity of flush-mounted speakers in the ceiling continues to grow. The Custom Round Series, or CRS, has long been a staple of installers around the world for these applications. Available in 5-, 6-, and 8-inch versions, a model exists for almost every specific situation.

Featuring identical drivers and performance to their CRS counterparts, the Custom Square Series, or CSS, speakers simply present these elements in a square baffle. Many designers and installers prefer this physical format in certain installations due to architectural or other aesthetic considerations.

Most of the CRS/CSS speakers feature our patented WavePlane tweeter baffle, which improves both dispersion and high frequency performance. Most of the CRS/CSS also offer pivoting tweeters and adjustable woofer and/or tweeter levels for fine-tuning the system during trim out.

Order Stock # ASM86601

Specifications

• 6 1/2" Polypropylene Cone Woofer with Rubber Surround
• Pivoting 1" Liquid Cooled Silk Dome Tweeter
• Sensitivity: 92dB 1W/1m
• Power Handling: 100 Watts
• Impedance: 8 Ohms
• Frequency Response: 40Hz - 20kHz
• Diameter x Depth: 9 13/16" x 4 1/16" (249 mm x 97 mm)
• Cut-Out Diameter: 8 1/4" (210 mm)
