RTI RKM-1+

Multi-Room Audio Keypad

**9 Button Single Gang Unit**

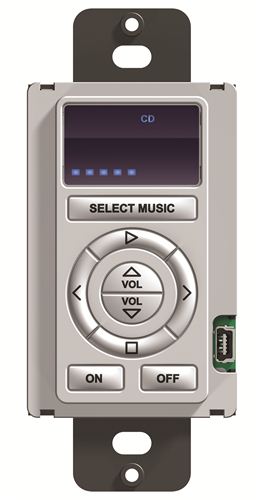

The RKM-1+ has a clean, sleek look that is designed specifically for multi-room audio control that is easy to use and fits in nearly any budget. Outfitted with the essential hard buttons for intuitive control, the RKM-1+ also has a customizable LED backlit lens for visual feedback of source selection in addition to volume and tone levels*. The RKM-1+ keypad has an open architecture providing the flexibility to customize control for almost any multi-zone receiver or distributed audio system either directly via IR or adding an RTI control processor provides two-way control. Sized for a single gang electrical box, the RKM-1+ is perfect for flush-mount installations in walls or cabinets and ships with white, black and light almond faceplate and buttons.

*Feedback requires a compatible two-way RTI control processor.

Description

Perfect for multi-room audio control, the RKM-1+ is designed for ease of use and affordability. It fits into a single gang electrical box, ensuring seamless integration into homes and buildings it fits in a single gang electrical box and ships with white, black and light almond faceplate and interchangeable buttons. When used together with compatible RTI control processors, the RKM-1+ can communicate bidirectionally with many popular multi-zone receivers and distributed audio systems, reflecting current source and volume level on its LED backlit lens.

A built-in IR output port allows the RKM-1+ to directly control almost any audio/video component up to 1000 feet away. When used with the available RTI automation devices, the RKM-1+ is capable of infrared routing, relay control, power sensing and RS-232 communications for advanced control. Programming is fast and efficient thanks to the Windows® based Integration Designer software.*

*Integration Designer software only available to authorized RTI dealers.

Key Features

• Provides feedback from distributed audio systems (ex. AD-4/AD-8)and multi-zone receivers via compatible RTI XP series control processor (XP-6/XP-8s).
• Includes white, black, and light almond faceplate and interchangeable buttons.
• Use any standard Decora® type faceplate.
• Fits in a single gang outlet box.
• Eight selectable sources.
• Backlit volume level indicator.
• Customizable LED backlit film source indicator.
• Custom laser-etched LED films may be ordered using LaserShark.
• Open architecture allows control of virtually anything.
• IR output port drives up to 1000 feet of wire.
• Completely customizable and programmable.
• Optional modules/processors for voltage sensing (to monitor power status of equipment) and two-way control.
• USB Programming.

Specifications

• Power: +9VDC to +16VDC, 350mA max
• Backlights
  • Blue LED - Eight sources
  • Blue LED - Nine volume level indicators
• Infrared Output Port
  • 200 mA output
  • Drives up to 1000ft (300 m) of wire
• Operating Humidity: 5% to 95% Non-condensing
• Operating Temperature: +32°F to +122°F (0°C to +50°C)
• Total System Memory: 64k Bytes Flash (non-volatile) memory
• Device Capability: Total number of devices is limited only by memory
• Macro Capability
  • Unlimited steps in a single macro
  • Total number of macros is limited only by memory
  • Macro capability on every button
• Communications: USB programming port
• Enclosure: Formed steel, black powder coat
• Front Plate: High-impact molded ABS plastic, white
• Mounting: Mounts into single gang box
• Bezel Dimensions: Purchased separately (Decora Type)
• Dimensions (H x W x D): 4.1 in (104mm) x 1.8in (46mm) x 1.0 in (25mm)
• Installation Cut-Out (H x W): 2.8 in (71mm) x 1.8in (46mm)
• Total Depth in Wall: .75 in (19mm) Plus Cables
• Weight: 4 oz (284 g)
• Warranty: One Year (Parts & Labor)

All specifications subject to change without notice.

Decora is a registered trademark of Leviton Manufacturing Co. Inc.
